To create this symbol, start from an empty line symbol and then do the following steps:

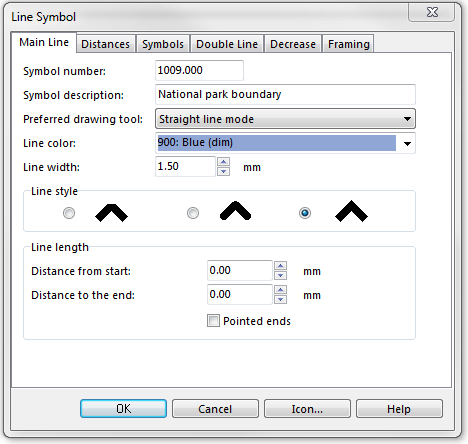

Main Line

  • Line color: Blue dim (Duplicate any blue color in the color table and set the opacity to 50%)
  • Line width: 1.50 mm
  • Line style: Butt cap, Miter join

NationalPark MainLine.PNG

Double Line

  • Mode: Left line dashed
  • Width: 1.50 mm
  • Left Line color: Blue
  • Left Line width: 0.20 mm
  • Dashed Distance a: 1.30 mm
  • Dashed Gap: 0.40 mm

NationalPark DoubleLine.PNG

Download link: Example_NationalParkBoundary.ocd
