Example Full Line

From OCAD Wiki - English
Jump to: navigation, search


To create this line symbol, enter the following parameters to a newly created line symbol:

Main Line

  • Line color: black (define and edit colors in the Colors dialog, which can be found in the Map menu)
  • Line width: 0.2 mm

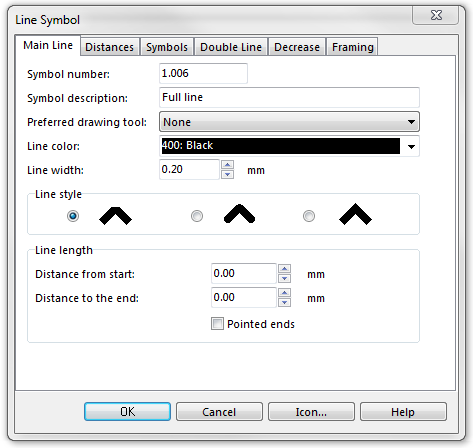

FullLine MainLine.PNG


Download link: Example_FullLine.ocd


Back to the Create a New Line Symbol page.
